Description
Product Description

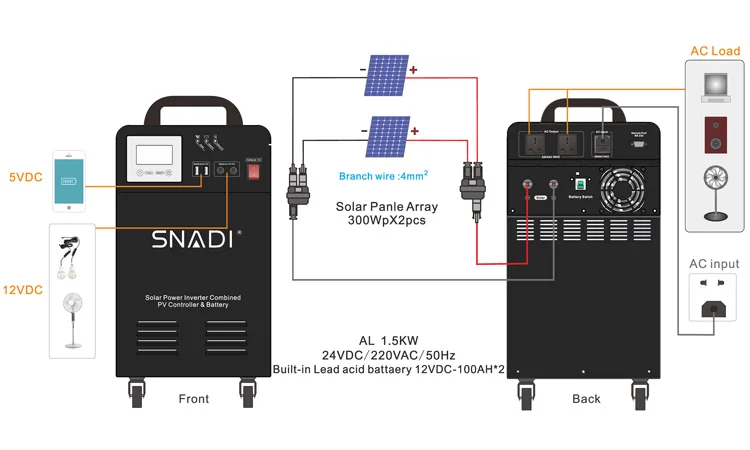

Off grid solar energy system is worked by solar panels, solar charge controller, battery, solar inverter
Now
Combined to All in one solar generator
Easily Installation All in one solar energy system for home
Just connect solar panel to supply solar power
No pollution to environment, Zero carbon emissions
Solar System With DC Led Bulb supplying 12V DC power, charging mobile fast via 5V USB, suit to RV travel, go camping, Desert camping
Any customization style and specification OEM/ODM by our factory to develop in your buisness
|
Item
|
Commodity & Specification
|
QTY
|
|
Solar panel |
Peak power: 150W
Open circuit voltage:22.6V
Short circuit current: 8.89A
Dimension: 1480*670*35mm
Weight: 10.7KG
|
1 |
300W All in one Solar generator
|
Model:AL
|
0.3KW/12V
|
0.5KW/12V
|
1KW/12V
|
1KW/24V
|
1.5KW/24V
|
|||||
|
Inverter
|
|
|
|
|
|
|||||
|
Battery voltage
|
12V
|
|
|
24V
|
|
|||||
|
In-built battery specification
|
1*55AH/12V
|
|
100AH/12V
|
2*55AH/12V
2*100AH/12V
|
2*100AH/12V
|
|||||
|
Rated power
|
300W
|
500W
|
1000W
|
1000W
|
1500W
|
|||||
|
Output voltage
|
110/220VAC
|
|
|
|
|
|||||
|
Output frequency
|
50/60Hz
|
|
|
|
|
|||||
|
Output wave form
|
Pure sine wave
|
|
|
|
|
|||||
|
Charge by a mains supply
|
|
|
|
|
|
|||||
|
Input voltage
|
110/220VAC—* (‘*’ means an optional function)
|
|
|
|
|
|||||
|
Charge current
|
10A (MAX)-* (‘*’ means an optional function)
|
|
10A (MAX)-* (‘*’ means an optional function)
|
|
|
|||||
|
Solar input
|
|
|
|
|
|
|||||
|
Maximum photovoltaic voltage (VDC)
|
≤ 25V
|
|
≤ 50V
|
|
|
|||||
|
Charge voltage (VDC)
|
10-25V
|
|
20-50V
|
|
|
|||||
|
Rated charge current
|
30A
|
|
|
|
|
|||||
|
Maximum power
|
360Wp
|
|
720Wp
|
|
|
|||||
|
Voltage of high-voltage protection
|
14.2V
|
|
28.4V
|
|
|
|||||
|
Voltage of overcharge recovery
|
14.0V
|
|
28.0V
|
|
|
|||||
|
Voltage of floating charge
|
13.7V
|
|
27.4V
|
|
|
|||||
|
DC output
|
|
|
|
|
|
|||||
|
Voltage of high-voltage protection
|
16V
|
|
32V
|
|
|
|||||
|
Voltage of high voltage recovery
|
15.2V
|
|
30.4V
|
|
|
|||||
|
Voltage of low voltage recovery
|
12.6V
|
|
25.2V
|
|
|
|||||
|
Voltage of low voltage protecion
|
11V
|
|
22V
|
|
|
|||||
|
5VDC USB output port
|
2 ones/MAX 2A
|
|
|
|
|
|||||
|
12VDC output port
|
2 DC ports + backboard 12V terminal block (MAX 8A)
|
|
|
|
|
|||||
|
Starting temperature of the exhaust fan
|
> 45℃
|
|
|
|
|
|||||
|
Ambient temperature for operation
|
0-40℃
|
|
|
|
|
|||||
|
Ambient temperature for storage
|
-25 – 55℃
|
|
|
|
|
|||||
|
Operation/storage conditions
|
0-90% (no condensation)
|
|
|
|
|
|||||
|
External dimensions: D*W*H (mm)
|
343*225*443
|
|
423*260*453
|
|
513*310*493
|
|||||
|
Packing dimension: D*W*H (mm)
|
420*290*490
|
|
520*370*520
|
|
610*420*550
|
|||||
