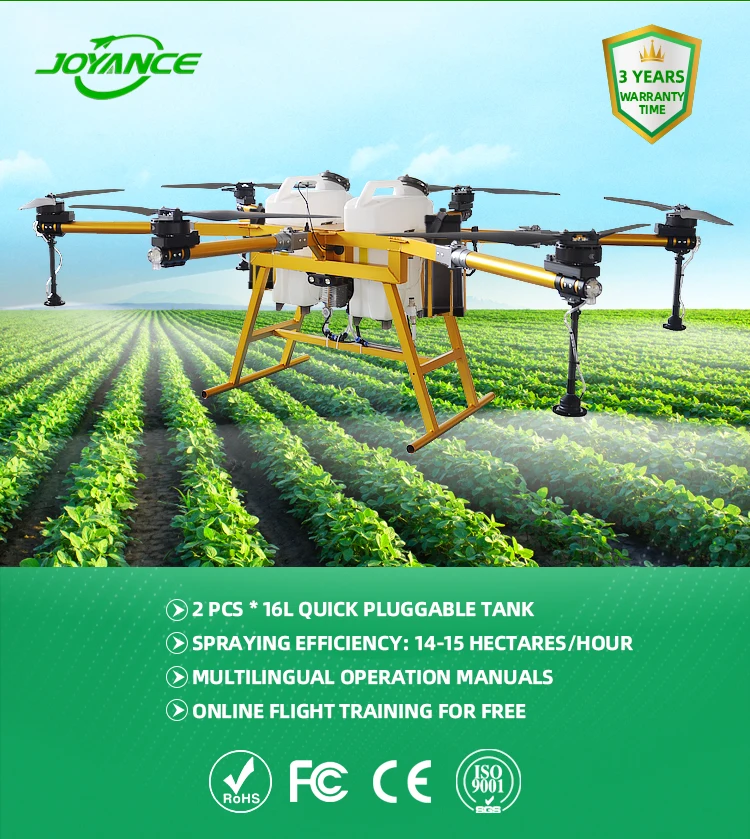

Professional Long Distance 32kg 20kg Agriculture Sprayer UAV Large Helicopter Heavy Payload Drone with payload
The Details of sprayer drones
|
Model
|
JT10L-404QC
|
JT16L-404QC
|
JT32L-606QC
|
||
|
Pesticide Tank
|
10L
|
16L
|
16L*2
|
||
|
Net Weight
|
13kg
|
18kg
|
28.5kg
|
||
|
Take-off Weight
|
27kg
|
40kg
|
74kg
|
||
|
Flying Time
|
10~15min
|
10~15min
|
10~15min
|
||
|
Flying Radius
|
0~1000m
|
0~1000m
|
0~1000m
|
||
|
Flying Height
|
0~30m
|
0~30m
|
0~30m
|
||
|
Flying Speed
|
0~12m/s
|
0~12m/s
|
0~12m/s
|
||
|
Work Temperature
|
-10~70°C
|
-10~70°C
|
-10~70°C
|
||
|
Work Humidity
|
0~90%
|
0~90%
|
0~90%
|
||
|
Spray Speed
|
0~8m/s
|
0~8m/s
|
0~8m/s
|
||
|
Spray Width/Nozzle No.
|
>3.5~5.5m / 4 Nozzles
|
>4~6m / 8 Nozzles
|
>8~10m / 4 Centrifugal Nozzles
|
||
|
Spray Flow
|
1~1.5L/min
|
2~2.5L/min
|
3.5~4L/min
|
||
|
Spray Efficiency
|
5~7Ha/Hr
|
8~10Ha/Hr
|
12~15Ha/Hr
|
||
|
Flying Downward Airflow
|
4~15m/s
|
4~15m/s
|
4~15m/s
|
||
|
Wind Resistance
|
10m/s
|
10m/s
|
10m/s
|
||
|
Machine Size
|
Spread Size
|
W1.15m x L1.15m x H0.6m
|
W1.5m x L1.5m x H0.7m
|
W2.4m x L1.18m x H0.63m
|
|
|
|
Folded Size
|
W0.85m x L0.65m x H0.6m
|
W0.85m x L0.85m x H0.7m
|
W1.3m x L0.7m x H0.63m
|
|
|
Power System
|
Motor
|
Brushless
|
Brushless
|
Brushless
|
|
|
Propeller
|
Carbon Fiber
|
Carbon Fiber
|
Carbon Fiber
|
||
|
ESC
|
Rapid Throttle Response
|
Rapid Throttle Response
|
Rapid Throttle Response
|
||
|
Flight Control
|
Joyance V8.3++ FC
|
Joyance V8.3++ FC
|
Joyance V8.8 / V8.3++ FC
|
||
|
Remote Controller
|
Joyance Datalink T12 RC
|
Joyance Datalink T12 RC
|

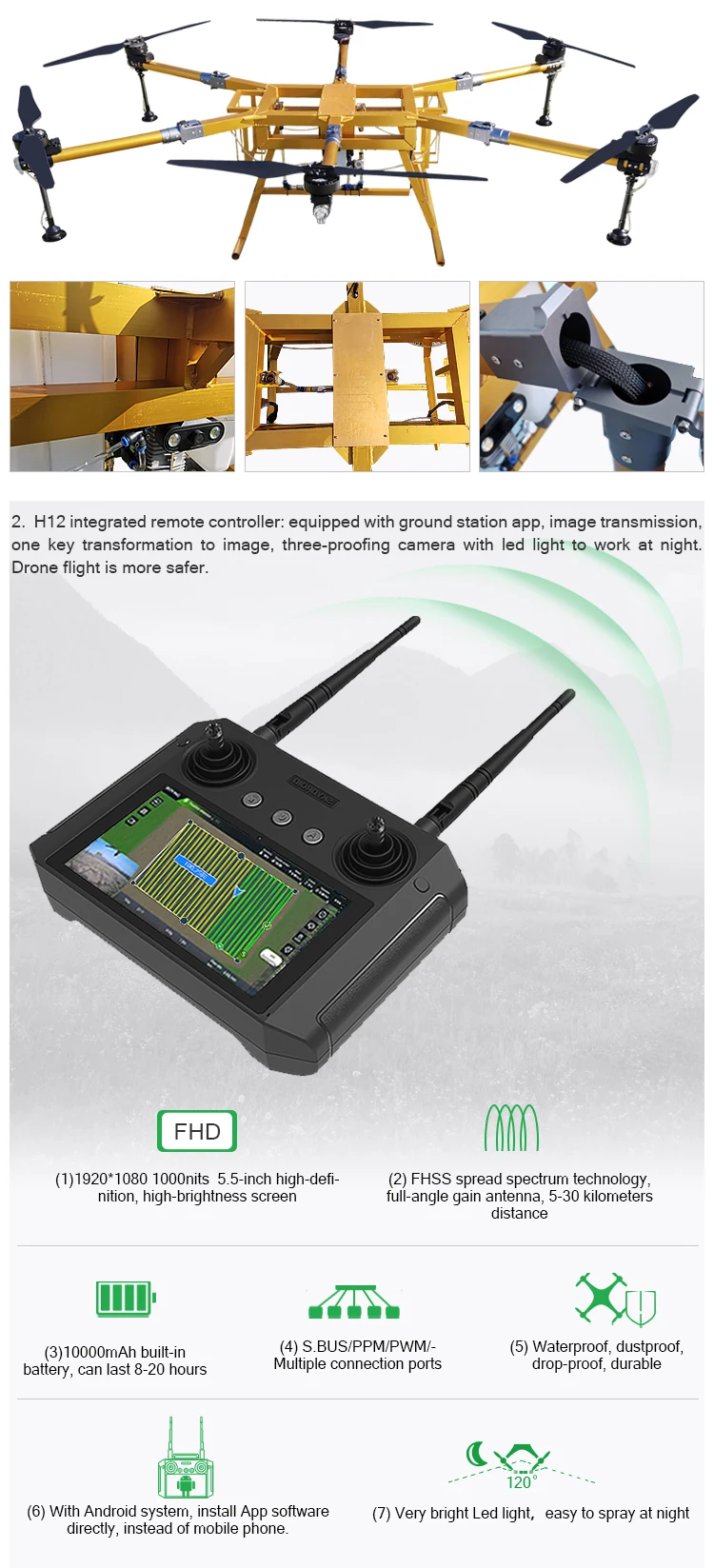

Joyance Datalink H12 RC
|
||
|
Battery / Quantity
|
14S 10000mAh / 1pc
|
14S 20000mAh / 1pc
|
16S 16000mAh / 2pcs
|
||
|
Adapter + Charger
|
Dual-Channel Charger 2400W
|
Dual-Channel Charger 3000W
|
Dual-Channel Charger 2400W
|
||
|
Packing Case
|
Aluminum Case
|
Aluminum Case
|
Aluminum Case
|
||
|
Toolkit
|
Maintenance/Repair Tools
|
Maintenance/Repair Tools
|
Maintenance/Repair Tools
|
||
Advantages of agriculture sprayer drones
1. 100% Aluminum Alloy of drone frame: the material is very light and strong. – A integrated designed: solid welding, not easy to deformation and more strong. – Flight more stable, more safer. Integral molding, almost no vibration. During flying sprayer drone, it avoids the vibration caused by screw loosening gradually.

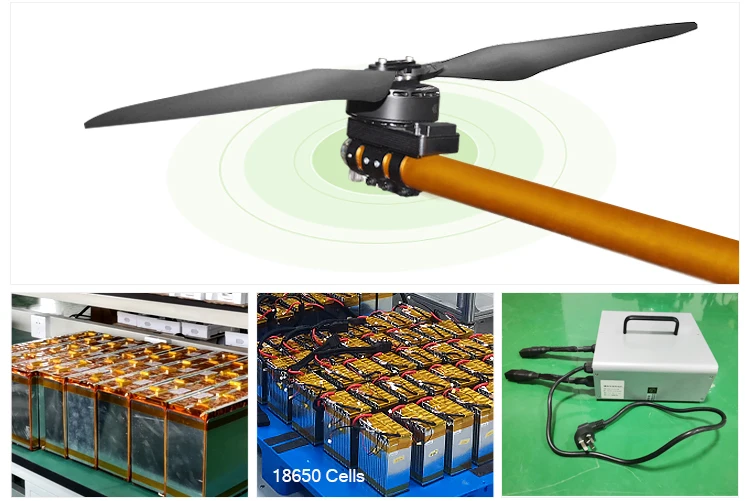

3. Super power system： – 6 pcs X9 Plus FOC with 45 mm diameter: 6 pcs motors have redundancy power to support 32L payload liquid chemical. – 2 sets 16S 16000 mAh smart batteries: use 18650 cells, the cycle times is more than 1000 times , longer service life. – 1 dual-channel smart charger: can charge and protect batteries effectively.
4. Upgraded installed 2 pcs brushless WATER PUMP for 32 liters agriculture drone. Brushless water pump can be used for more than 500 hours, which is 3-5 times longer than ordinary waterpump life, reducing maintenance costs. Voltage range: 12-14s, Max flow: 2 * 5L/m Waterproof: IP 68 After finishing spraying, it can be washed with water directly to reduce pesticide corrosion.

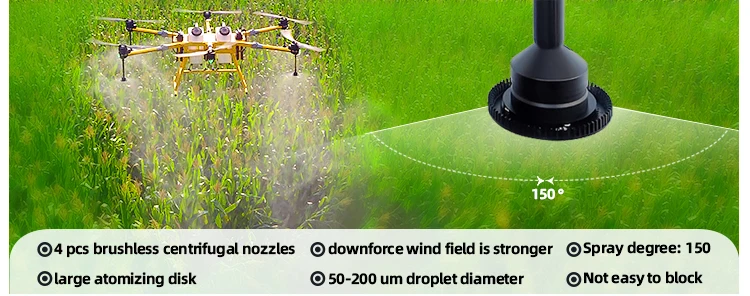

5. 4 pcs brushless Centrifugal Nozzles: large atomizing plate, better atomization effect. The downforce wind field is stronger, more suitable for spraying leafy plants, fruit trees etc.
