Product Description

OEM! Professional delivery electric bicycle dirt bike electric fat ebike3000W 5000W 8000W 12000W 15000W

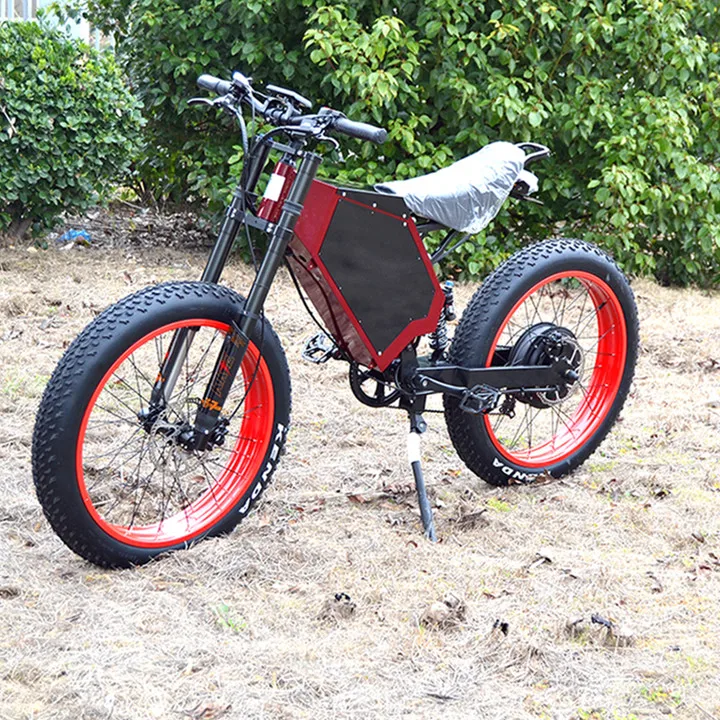

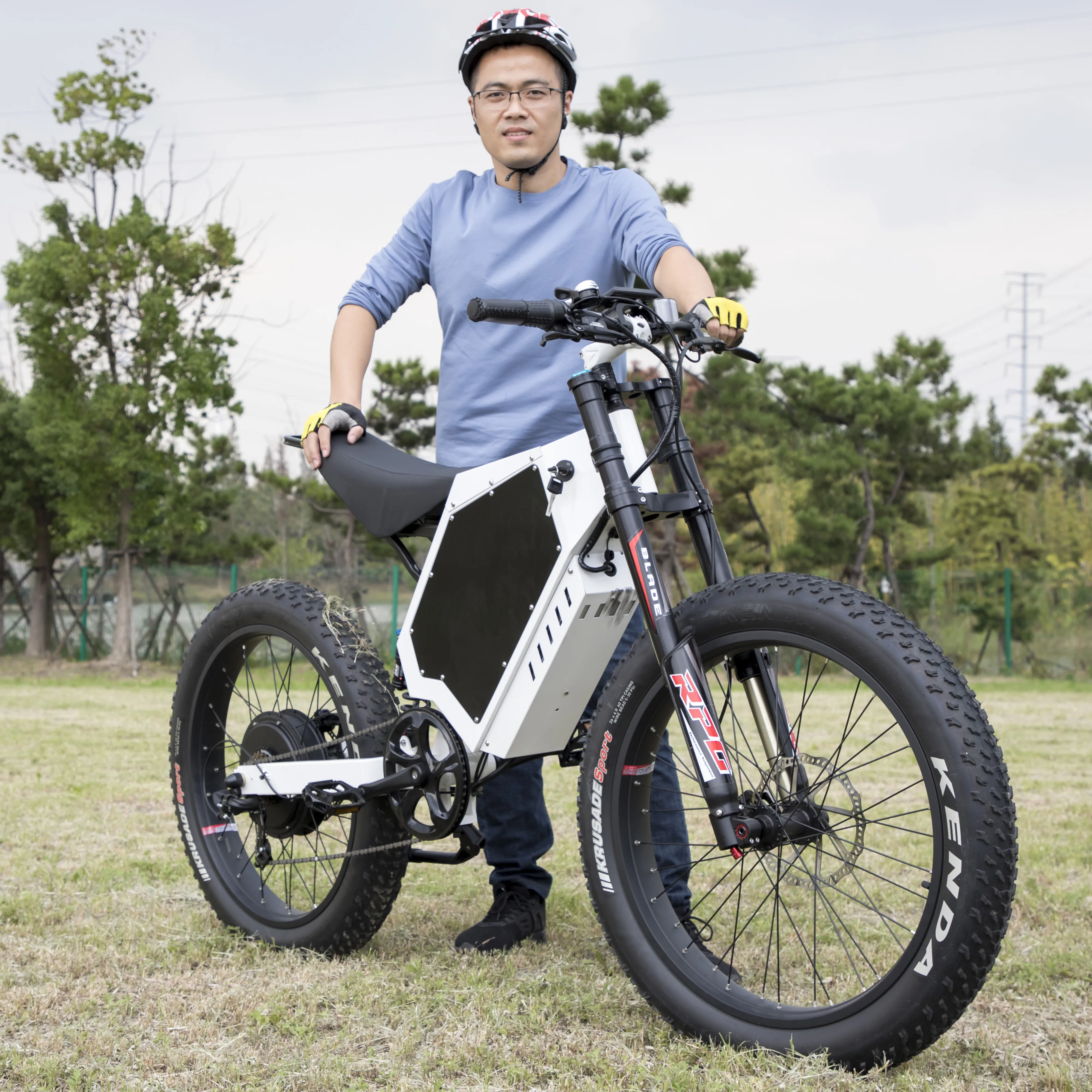

3000W 5000W 8000W Ebike Mountain Electric Bicycle with 26*4.0 Kenda tire

There are 3 colors available, Black, White, Red.

MAIN PARAMTERS
Motor Power
3000W
5000W
8000W
Battery
48V 31.2AH EVE cells battery
72V 26Ah EVE cells battery
72V 40.6Ah Panasonic cells battery
Controller
60A Controller
80A Controller
150A Sabvoton Controller
Max Speed
60km/h
70km/h
100km/h
Mileage
About 65km
About 70km
About 95km
Display
SW900 LCD Display (OPTIONAL UKC1 Colorful Display)

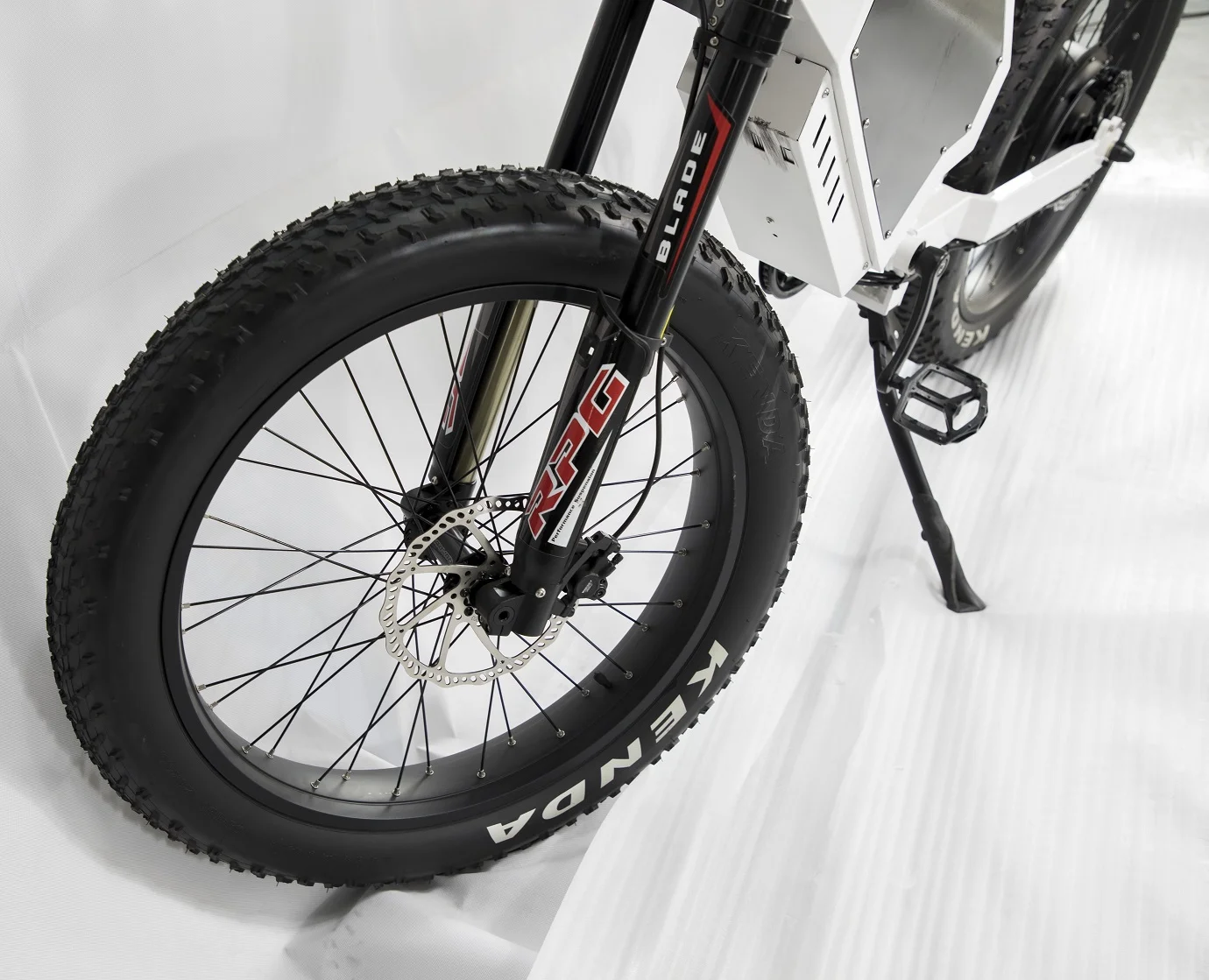

Front Fork
TAIWAN Zoom 680DH Triple Crown Suspension Fork (Adjustable and Lockable), Range: 180mm (Optinal: Zoom 1100DH, DNM-USD-8S, KKE

upside – down )

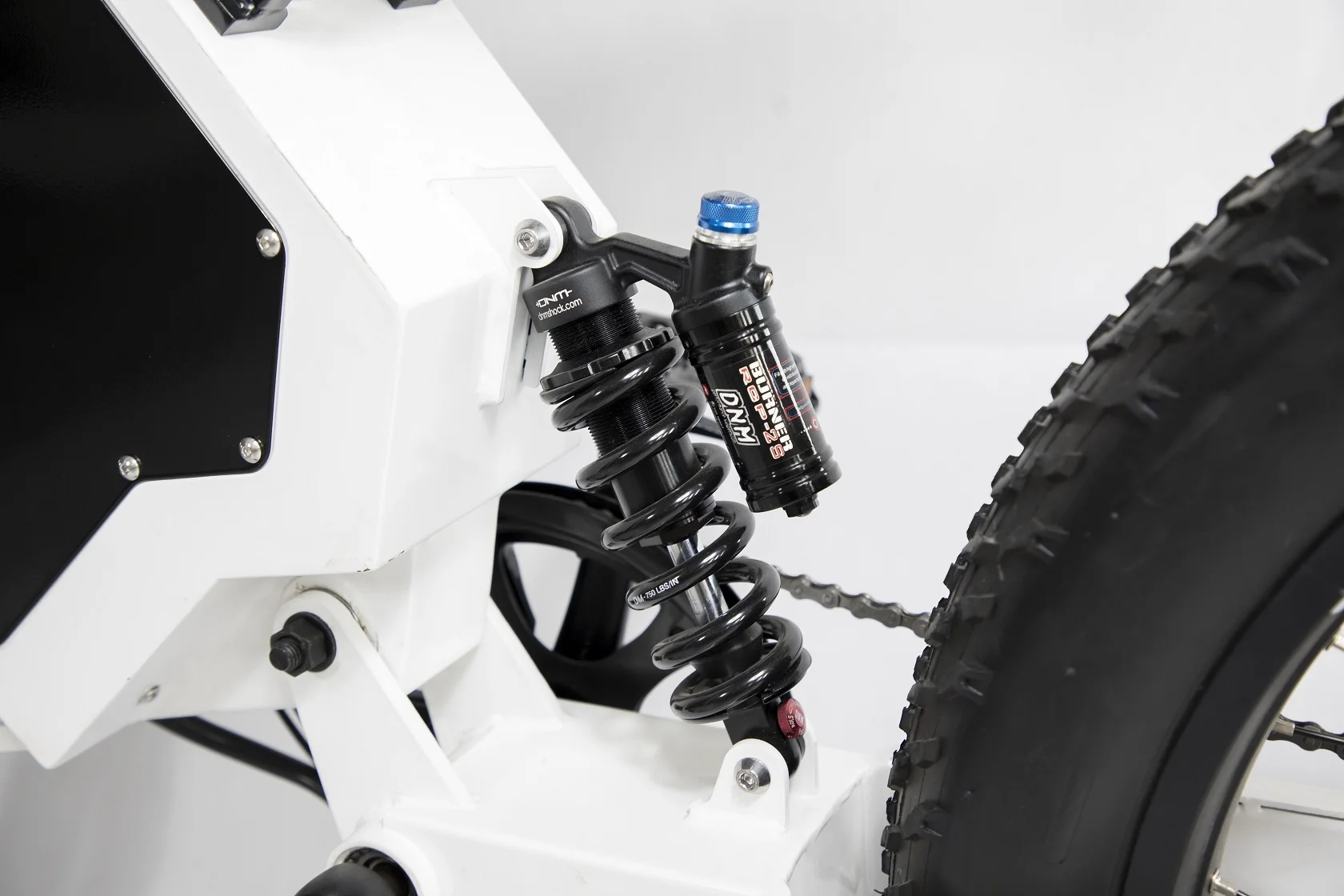

Rear Suspension
TAIWAN DNM BURNER-RC2S/Air Suspension
Seat
VELO BTANDED Ergonomic Big Seat; high quality PU (Optional Motorcycle seat )

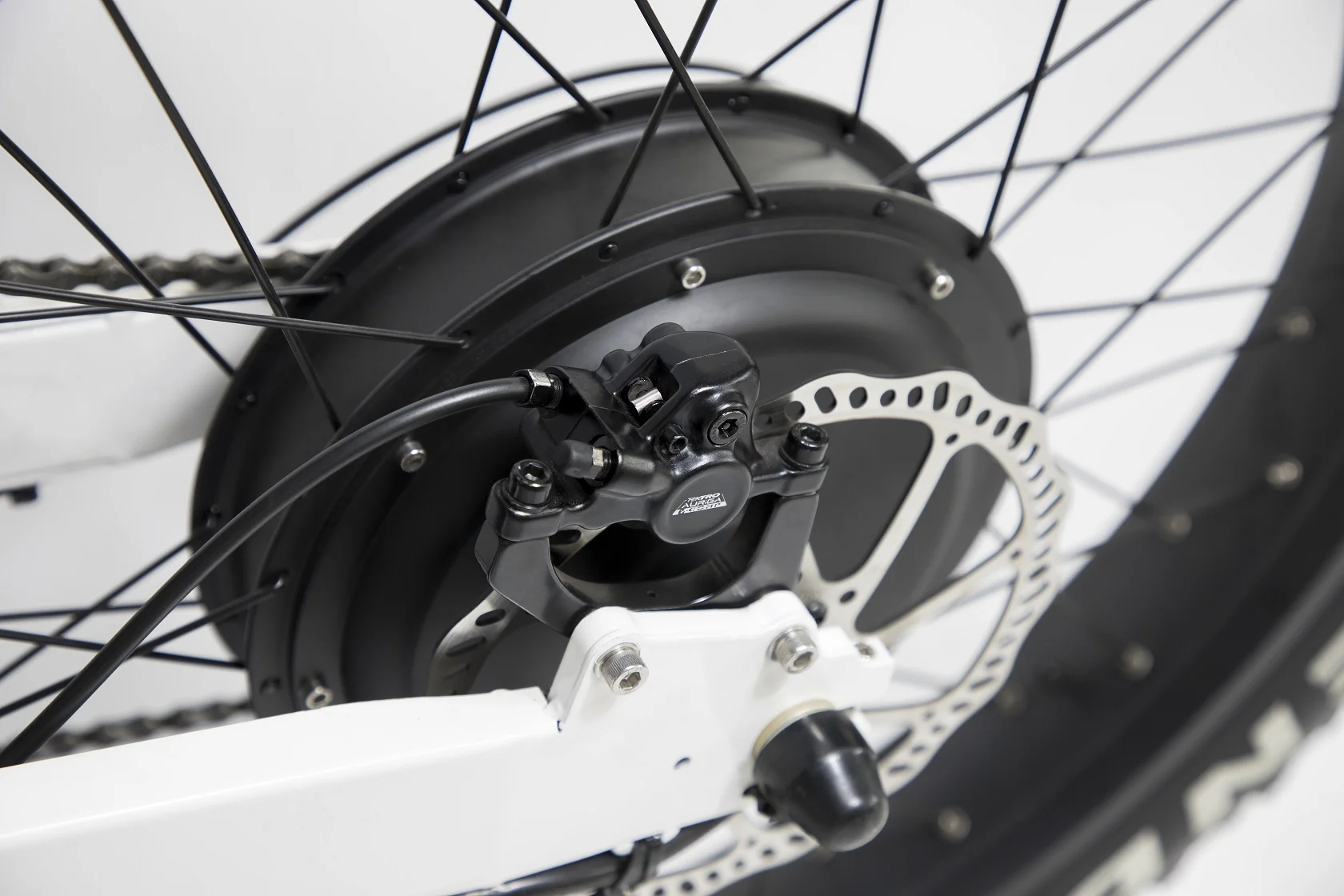

Braking System
TAIWAN TEKTRO Modified Hydraulic Disc Brake (Cut Off Power)

Aluminum Alloy 203mm roto disc brake caliper adapter

TAIWAN TEKTRO 203mm Front & Rear Disc Brake Rotos

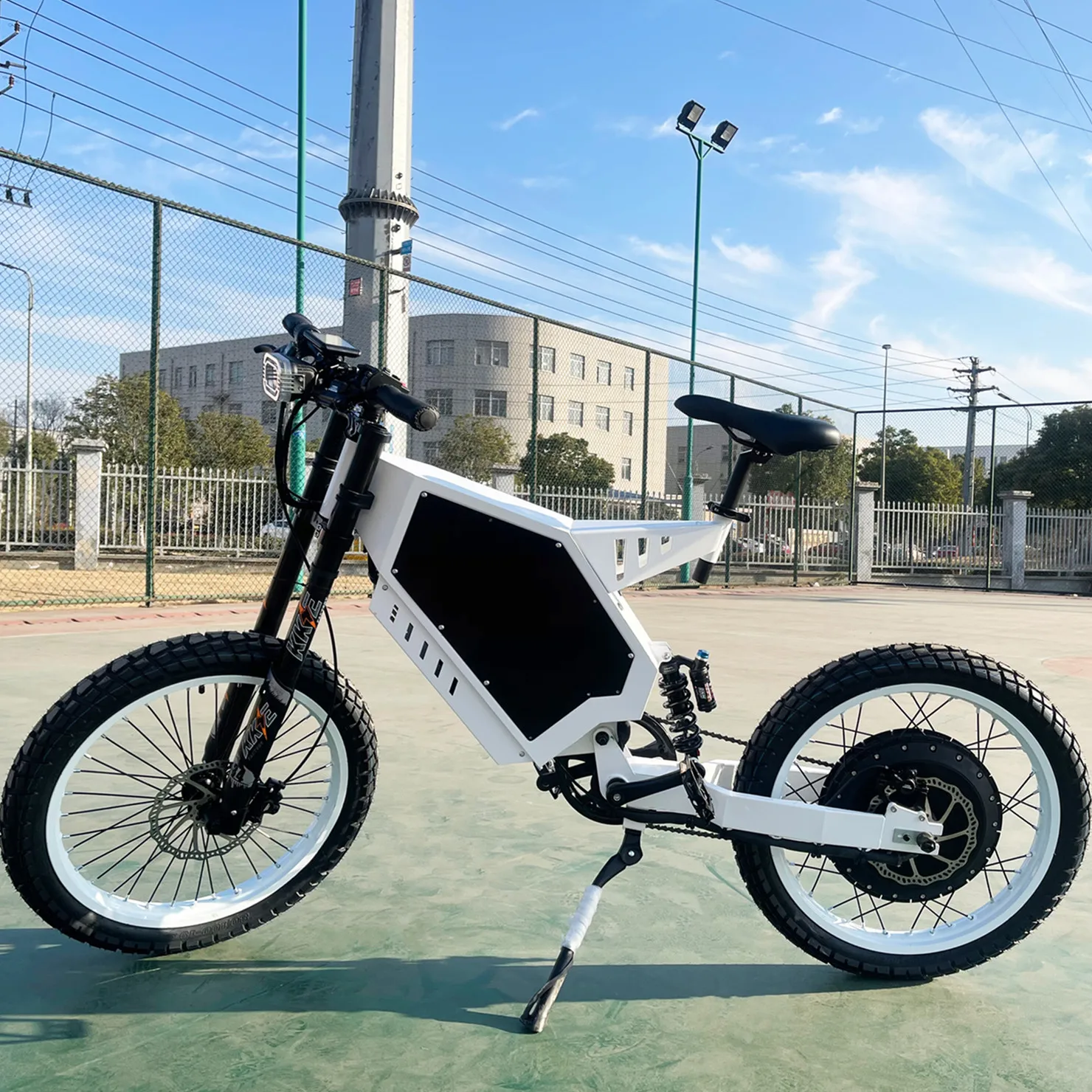

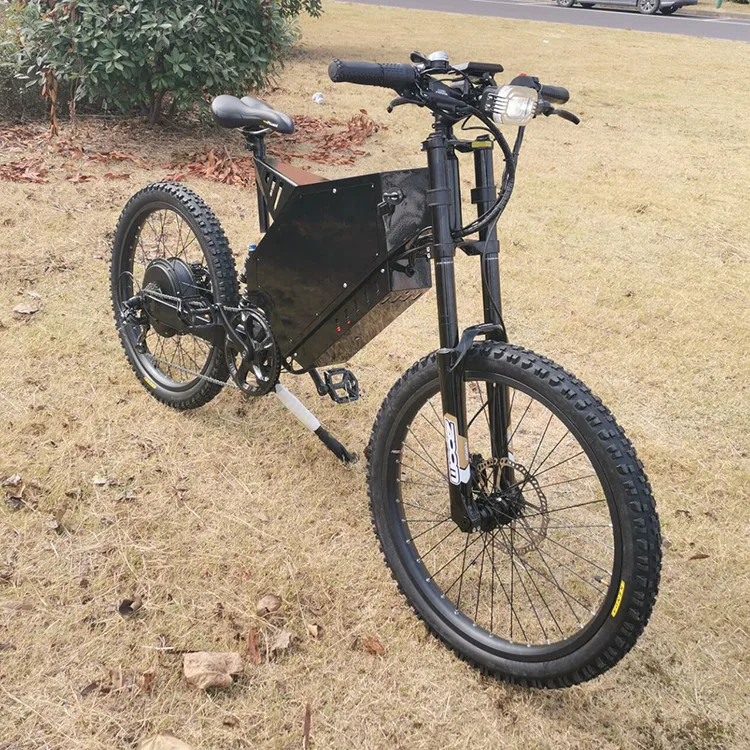

3000W 5000W 8000W Ebike Stealh Bomber can be with 26*2.6 Mountain tire as customers requires.


3000W 5000W 8000W Ebike Stealh Bomber with 19/21 motorcycle/turtle tire as customers requires.

Detailed Images

Parts detailed images, which can be sold separately, or sold together in Ebike

Controller
Smart Sabvoton controller 72V 150A

1. The advanced FOC vector algorithm is used to drive the DC brushless motor. 2. Automatic matching of motor Hall angle in 2 minutes 3. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection

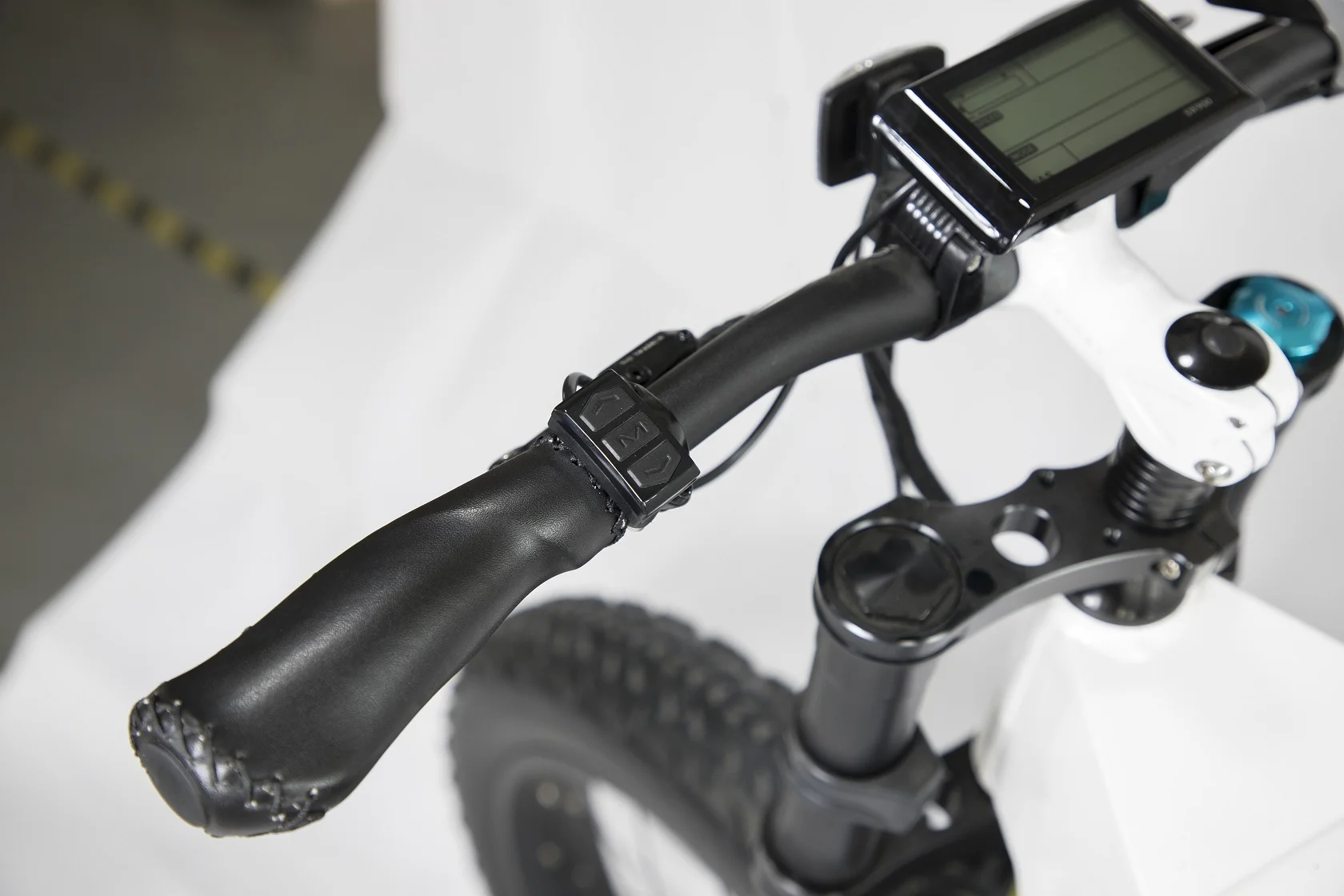

Handlebar +Brake system
TEKTRO E725 Hydraulic BrakeStandard FinishBarrel Lever / Black Bracket
Available In Painted ColorsMaterialCast Aluminum Lever & BracketLever Blade3 Finger Lever BladeAlso AvailableTS325AP – Nylon
Composite BracketWeight182 Grams / Pair
Standard FinishBarrel Lever / Black Bracket

DISPLAY
UKC1 Colorful display

3.5 inch IPS screen 24V/36V/48V/52V/60V/72V battery supply Rated operating power : 1W Max operating power : 5W USB charging port : 5V 500mA Off leakage current < 1uA Support current to controller : 100mA Operating temperature : -20~70℃, Storage temperature : -30~80℃

Optional parts


All Ebikes are Tested 100% Ok before shippment outdoor.

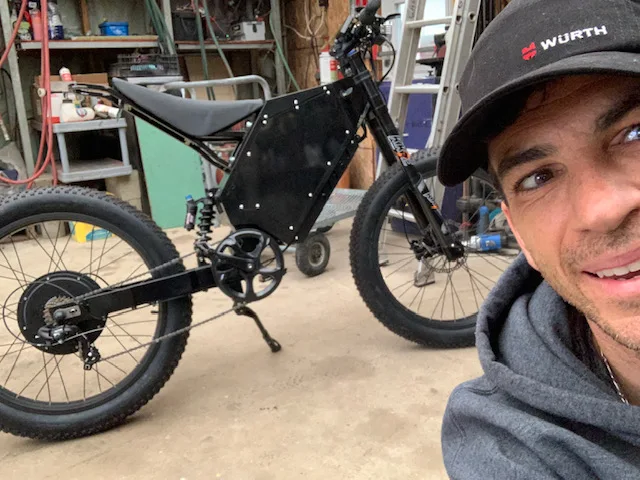

Below Photos for 72V 3000W Ebike are feedbacked from Customer in Canada.

Additional information

Color

Red, White, Black

Wattage

8000w, 15000W, Just Ebike Frame, 12000W, 5000W, 3000W
