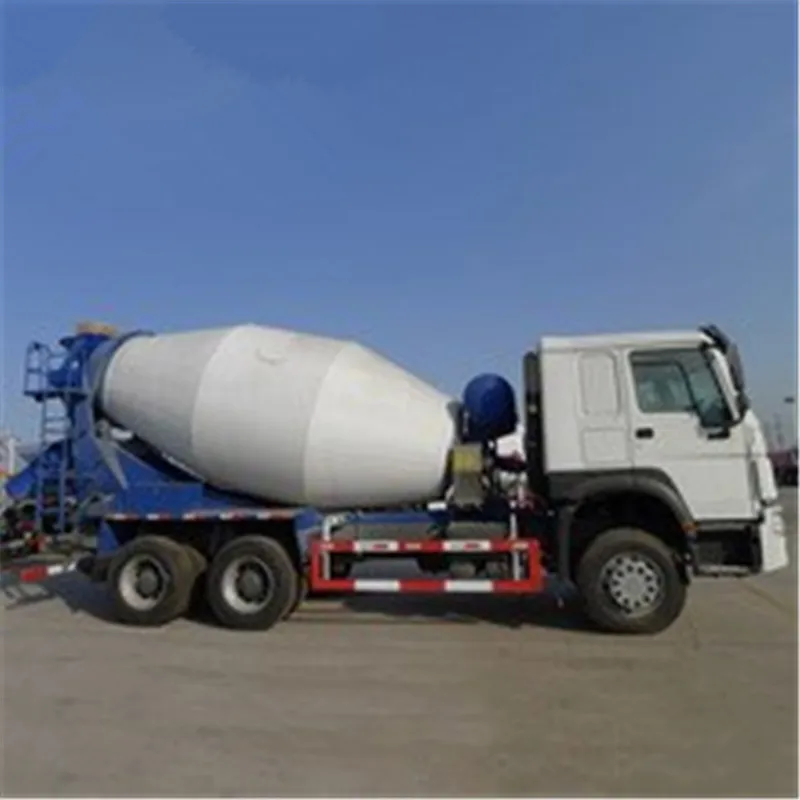

2019 new designed mini concrete mixer truck for sale

37,142,222.68

Compare
SKU: 3689805016866 Category:

Description

Product Description

2019 new designed mini concrete mixer truck for sale

SPECIFICATION


Product

8m3 Concrete Mixer Truck

Brand Name

SINOTRUK-HOWO

Chassis Model

ZZ1257N3247

Driving Type

6×4    Left Hand Driving

Place of Origin

Jinan, China

Color

Any color will be available

Product Specifications

Engine model

WD615

Engine Power

336HP

Displacement

9726ml

Fuel Type

Diesel

Emission standard

Euro II

Overall dimension L*W*H

8375*2496*3950mm

Wheelbase

3200+1350mm

Minimum turning circle

20

Curb weight   kg

12300

Max speed   km/h

90

Fuel tank capacity   L

300

Fuel type

Diesel

Transmission model

HW15710

Steering system

ZF8098

Front axle

HF9

Rear axle

HC16

Tyre

12.00-20   10+1spare

Brake system

Service

Dual circuit compressed air brake

Parking

Spring energy, compressed air operating on rear wheels

Auxiliary

Engine exhaust brake

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW76 cab, one sleeper, with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.

Geometric Volume

13.5m3

Drum rotating

14°

Agitator rotaion speed

0-14r/min

Feeding speed

>3.5m3/min

Water Tank Volume

400L

Discharge remain ratio

<0.2%

Detailed Images

Trade Strength

Additional information

Concrete Output

8m3

Model Number

PDS12SL
