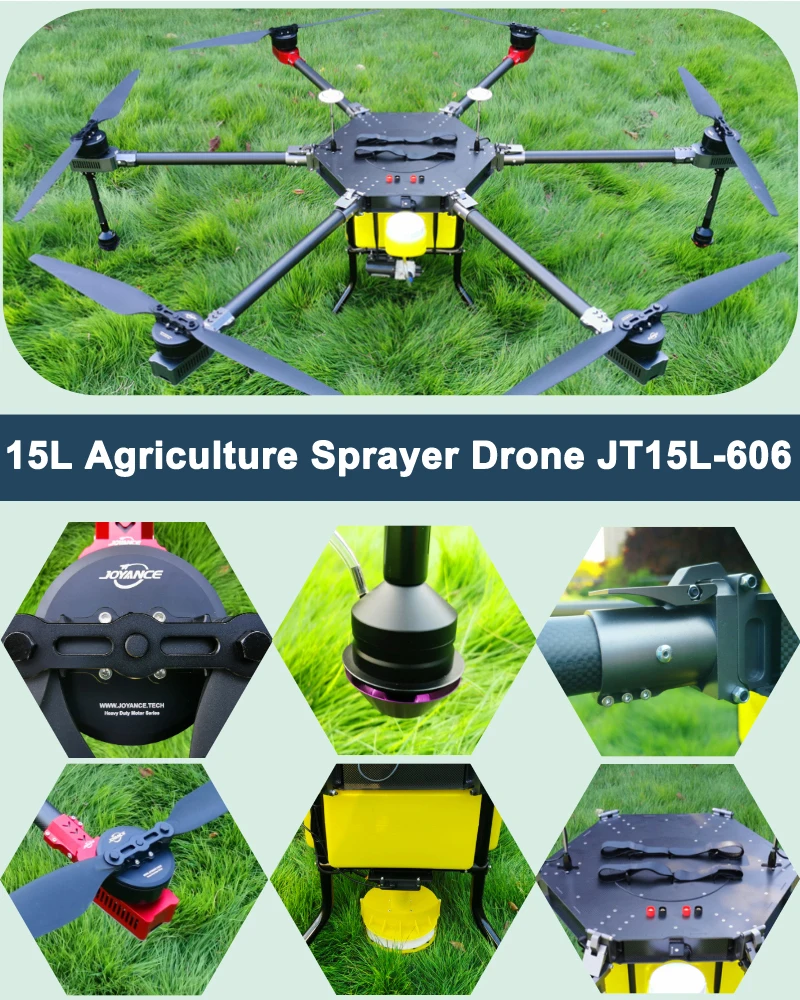

15L hexacopter professional long distance safety precision agricultural sprayer drone for farming

5,207,482.04

Compare
SKU: 3487520016866 Category:

Description

Products Description

Drone Applications
JOYANCE drones have been widely used for crop protection, mosquito control, and public disinfection.

Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.

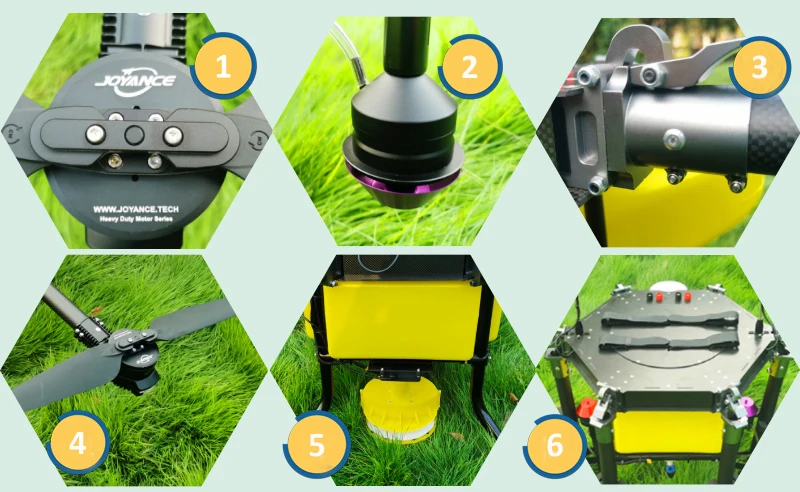

Product Feature

1. Heavy-duty brushless motor— FOC power system, more powerful, support more stable flight

2. Electrostatic centrifugal nozzle—50-200um small droplet size, better atomization and penetration effect. Suitable for spraying all crops and fruit trees.
3. Folding Joint—Aviation aluminum alloy material, makes the drone frame stronger, flight is more stable.
4. Foldable carbon fiber propeller—easy to transport
5. Granule Spreader—Spread solid fertilizer, seed, feed
6. Carbon fiber umbrella foldable frame. 3mm thick plate and 40mm diameter tube.

WHAT DOES YOUR PACKAGE INCLUDE???

15 Liters drone kit
JT15L-606 *1
Spraying system
15L 2 in 1 tank *1

Water Pump *1
Electrostatic centrifugal nozzles *2

Power system (FOC)
Motor+ESC+Motor Base *6

Carbon fiber foldable propeller *6

Battery
6S, 17000mAh Battery *2
Charger
1200W, 8-way, charger *1

Full charge 2 batteries in 30 minutes

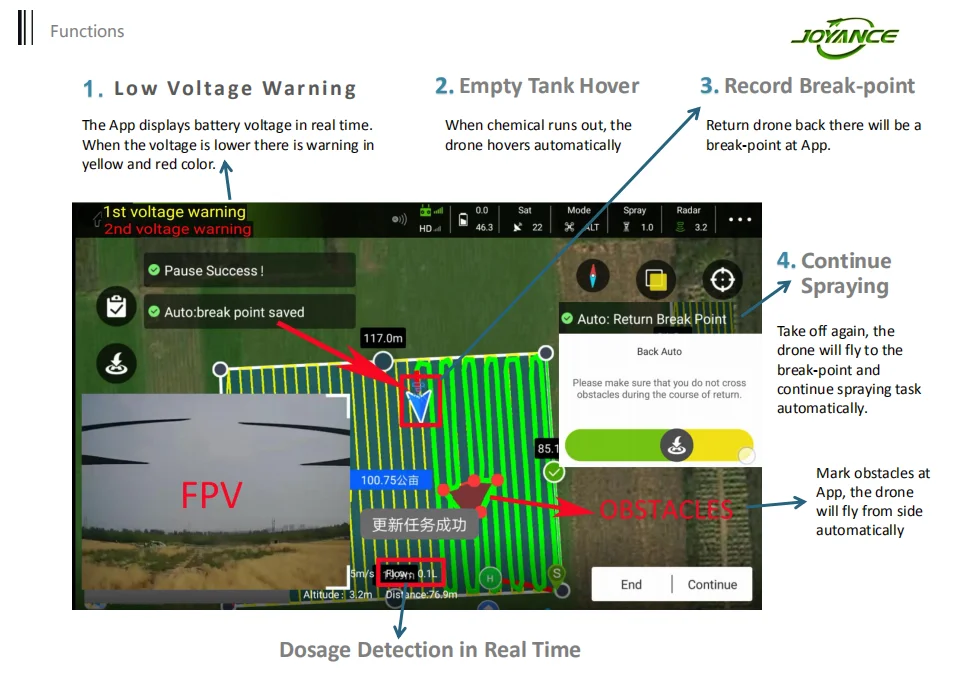

Intelligent Spraying
DCU + Flowmeter
Remote controller
With integrated radio telemetry, 1.5km distance, 12 hours work time/day
Toolkit
Maintenance tools, replacement spare parts
Package Case
Aluminum transport case, protect drone and the parts

Product Parameter

Technical parameter
JT10L-606
JT15L-606
JT15L-608 pro
JT20L-606
Pesticide load
10 Liters
15 Liters
15 liters
20 liters
Self weight
10.5 KG
13.5 KG
20 kg
18.5 kg
Take-off weight
22 KG
31 KG
39 kg
44 kg
Fly time
10-15 Min
10-15 Min
10~15 min
10~15 min
Spraying efficiency
5-6 Hectares/hour
7-8 Hectares/hour
8~10 Hectares/hour
9~11 hectares/hour
Spray width
4-6 M
6-7 M
8~10 m
7~8 m
Spray speed
0~8 M/S
0~8 M/S
0~10 m/s
0~10 m/s
Nozzle
2 centrifugal nozzles
2 centrifugal nozzles
4 centrifugal nozzles
4 centrifugal nozzles
Battery
2 pcs 6S 17000 mAh
2 pcs 6S 17000 mAh
2 pcs 6S 23000 mAh
2 pcs 6S 23000 mAh
Flying radius
1000 M
1000 M
1000 m
1000 m
Spray flow
1~1.5 L/Min
2~2.5 L/Min
2.5~3 L/min
2.5~ 3 L/min
Flying height
0~30 M
0~30 M
0~30 m
0~30 m
Work temperature
–10~70 ℃
–10~70 ℃
–10~70 ℃
–10~70 ℃
Work humidity conditions
0-90%
0-90%
0-90%
0-90%
Wind resistance
10 m/s
10 m/s
10 m/s
10 m/s
Spread size (m)
W1.3 * L1.3 * H0.45
W1.8 *L1.8 * H0.48
2.7 *1.55 * 0.5 m
1.95 *1.95 * 0.57 m
Folded size (m)
W0.6 * L0.6 * H0.51
W0.7 * L0.7 *H0.63
0.85 * 0.75 *0.7 m
0.7 * 0.7 *0.8 m
Aluminum box size / weight
73*67*65 cm / 50 kgs
75*75*81 cm / 70kgs
79*79*84 cm / 80 kgs
75*85*95 cm / 80 kgs

Hot Selling Drones

Additional information

Color

Gold

Model Number

JT15L-606
