Description
Product Description
* Excellent performance because of an MCU intelligent control technology;
* A wide range of applicable loads because of pure sine wave AC output;
* Convenient and practical 5VDC-USB output port and 12VDC output port;
* Solar array and battery common-anode system input;
* Charge by mains supply for flexible configuration(optional function)
* Overcharge protection and overdischarge protection for a longer battery life;
* Digital meter and LEDs for visualization of operation status of the equipment;
* Overall automatic protection and alarms including AC output overload protection,short circuit protection,etc
* A wide range of applicable loads because of pure sine wave AC output;
* Convenient and practical 5VDC-USB output port and 12VDC output port;
* Solar array and battery common-anode system input;
* Charge by mains supply for flexible configuration(optional function)
* Overcharge protection and overdischarge protection for a longer battery life;
* Digital meter and LEDs for visualization of operation status of the equipment;
* Overall automatic protection and alarms including AC output overload protection,short circuit protection,etc

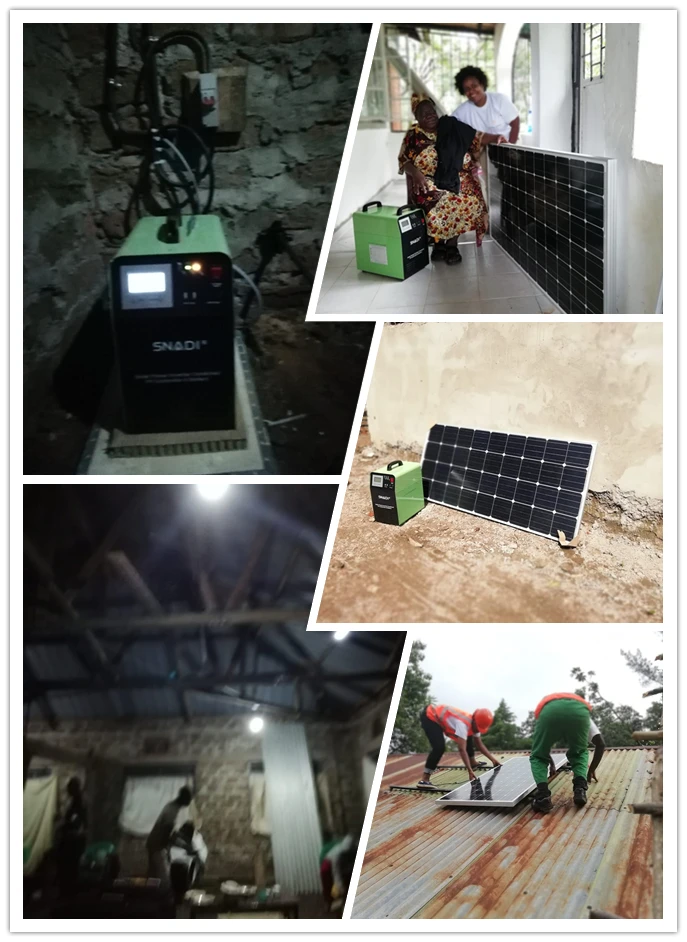

Product Display
Details Images
Technical Indexes
|
Mode: AL
|
0.3kW/12V
|
0.5kW/12V
|
0.5kW/24V
|
1kW/24v
|
1.5kW/24V
|
||||||
|
Inverter
|
Battery voltage
|
12v
|
24v
|
||||||||
|
Built-in battery specification
|
1*55Ah/12V
|
2*55Ah/12V
|
4*55Ah/12V
|
||||||||
|
Rated power
|
300W
|
500W
|
500W
|
1000W
|
1500W
|
||||||
|
Output voltage
|
110/220VAC
|
||||||||||
|
Output frequency
|
50/60HZ
|
||||||||||
|
Output waveform
|
pure sine wave
|
||||||||||
|
Charge by a mains supply
|
Rated voltage
|
110/220V AC-*(“*”mean an optional function)
|
|||||||||
|
Charge current
|
10A(maximum)-*(*means an optional function)
|
5A (maximum)-*(*means an optional function)
|
|||||||||
|
solar input
|
Maximum power
|
≤25V
|
≤50V
|
||||||||
|
Voltage of overcharge protection
|
10-25V
|
20-50V
|
|||||||||
|
Rated charge current
|
30A |
||||||||||
|
Maximum power
|
360Wp
|
720Wp
|
|||||||||
|
Voltage of overcharge protection
|
14.2V
|
28.4V
|
|||||||||
|
Voltage of overcharge recovery
|
14.0V
|
28.0V
|
|||||||||
|
Voltage of floating charge
|
13.7V
|
27.4V
|
|||||||||
|
DC output
|
Voltage of high-voltage protection
|
16V
|
32V
|
||||||||
|
Voltage of high voltage recovery
|
15.2V
|
30.4V
|
|||||||||
|
Voltage of low voltage recovery
|
12.6V
|
25
|
|||||||||
|
Voltage of lower voltage protection
|
11V
|
22V
|
|||||||||
|
5V DC USB output port
|
2one/max 2A
|
||||||||||
|
12V DC output port
|
2 DC ports + backboard 12V terminal block (maximum 8A)
|
||||||||||
|
Starting temperature of the exhaust fan
|
>45°C
|
||||||||||
|
Ambient temperature for operation
|
0 to 40°C
|
||||||||||
|
Ambient temperature for storage
|
-25 to 55°C
|
||||||||||
|
Operation/storage condition
|
0-90% (no condensation)
|
||||||||||
